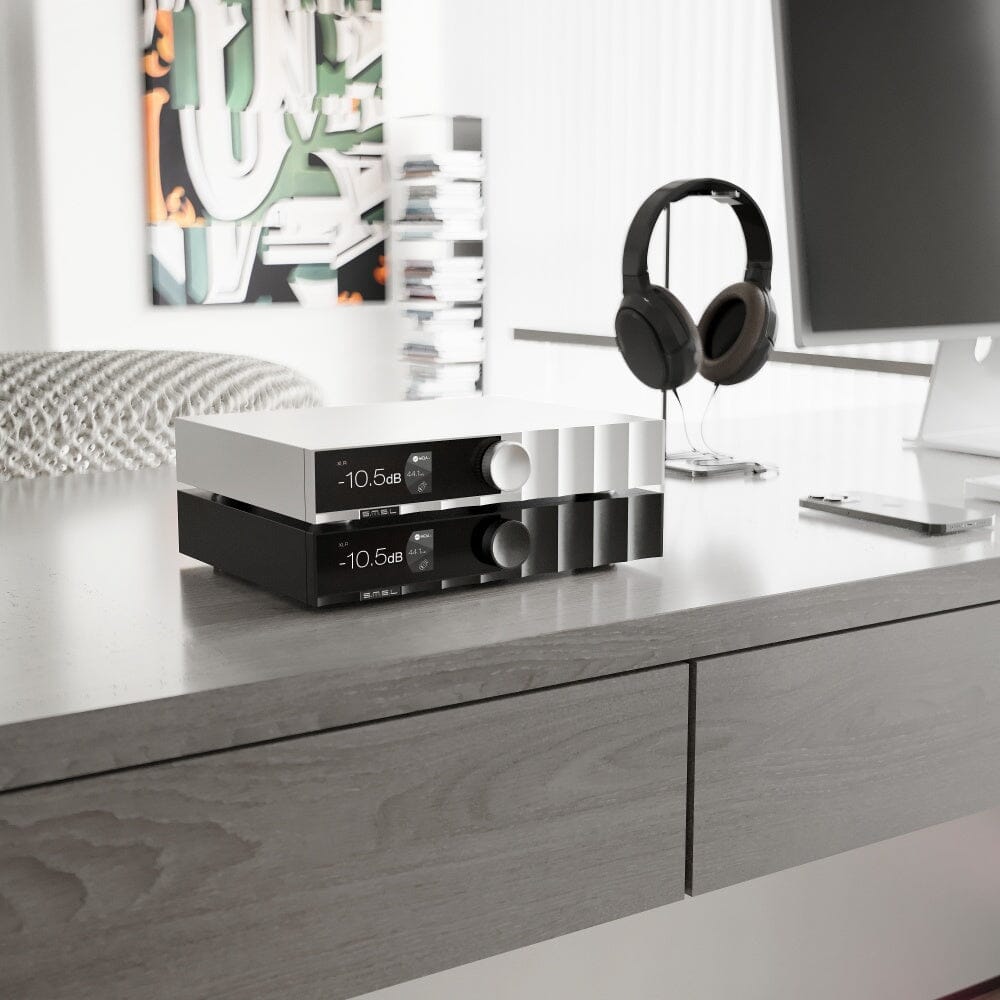

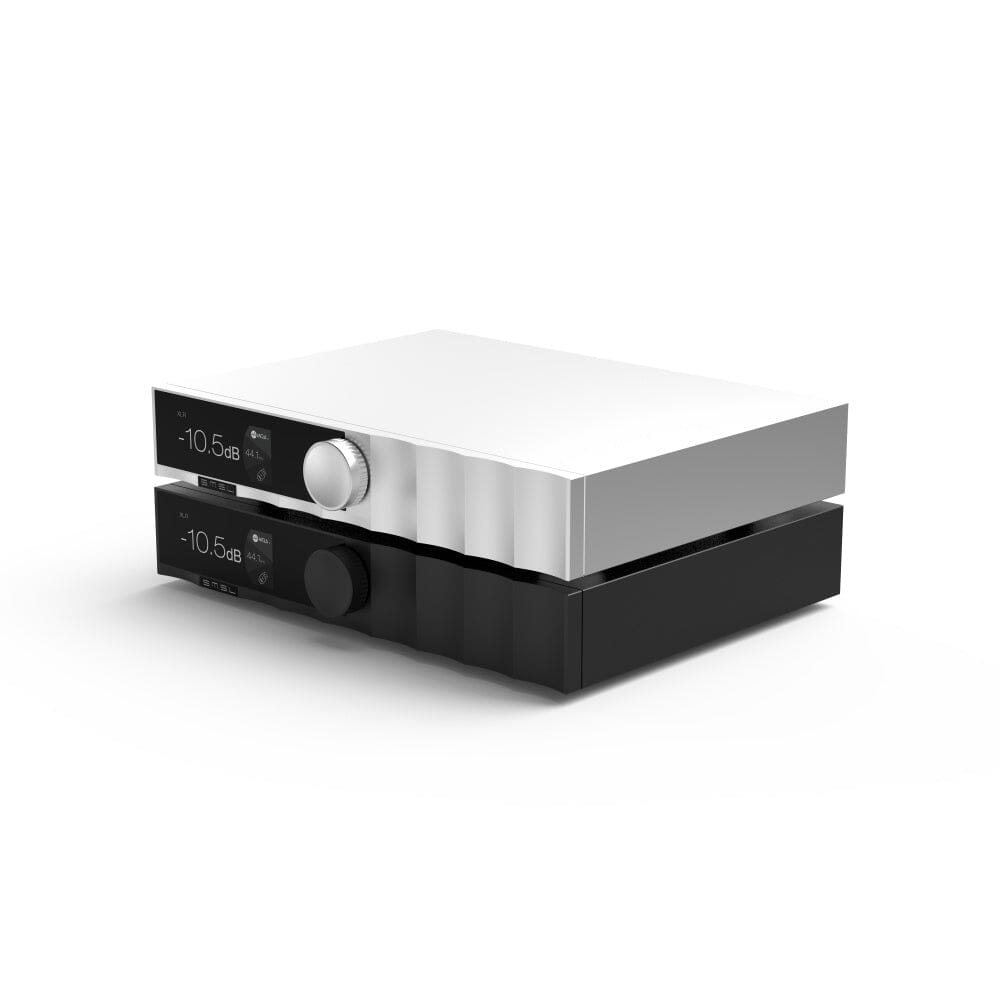

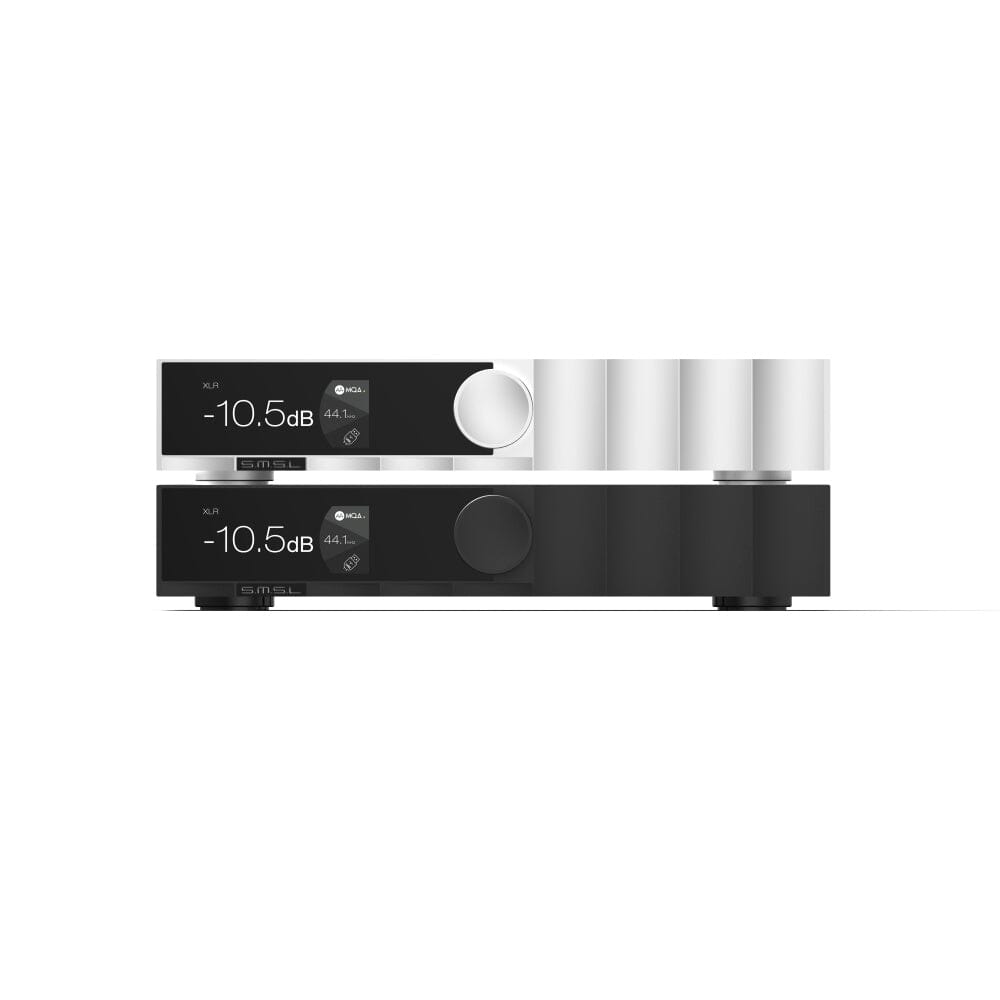

SMSL D400 MK2 AK4191+AK4499EX Desktop DAC

Features:-

>Flagship AKM AK4191+AK4499EX DAC Architecture.

>Staggering Performance with Ultra-Low Distortion of use 0.00006%(-124dB).

>Built-in 10MHz OCXO(Oven-Controlled Crystal Oscillator) Clock.

>Self-Developed CK-04 Clock Processing Circuit.

>3rd-Generation XMOS XU316 USB Processor.

>Full Hardware MQA & MQA-CD Decoding Support.

>Native High-Res 32-Bit/768kHz PCM and Native DSD up to DSD512.

>Qualcomm’s Advanced Bluetooth Processor Chipset.

>High-Definition Bluetooth Codec Support(LDAC, AptX HD, SBC, AAC, etc.).

>Premium Analog Stage with 5 High-End Dual Op-AMPs.

>Multiple Low-Noise Regulated Power Supplies.

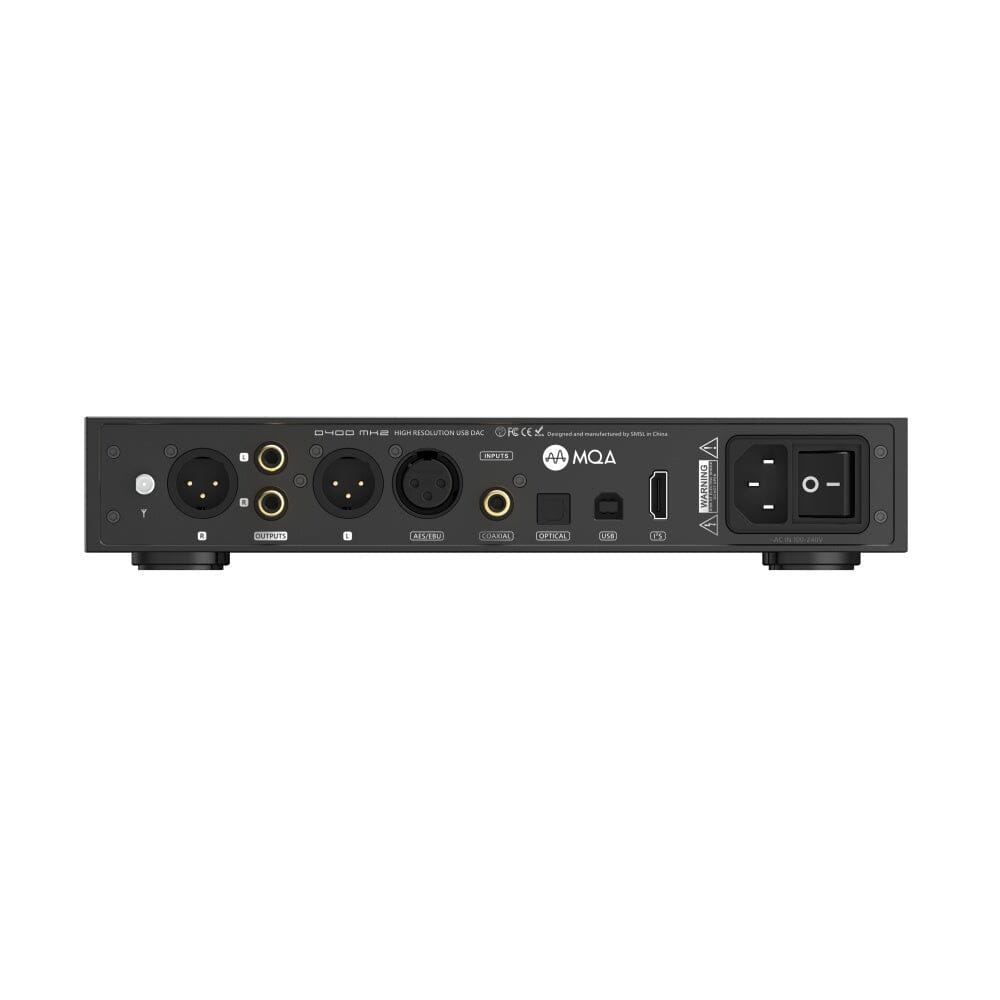

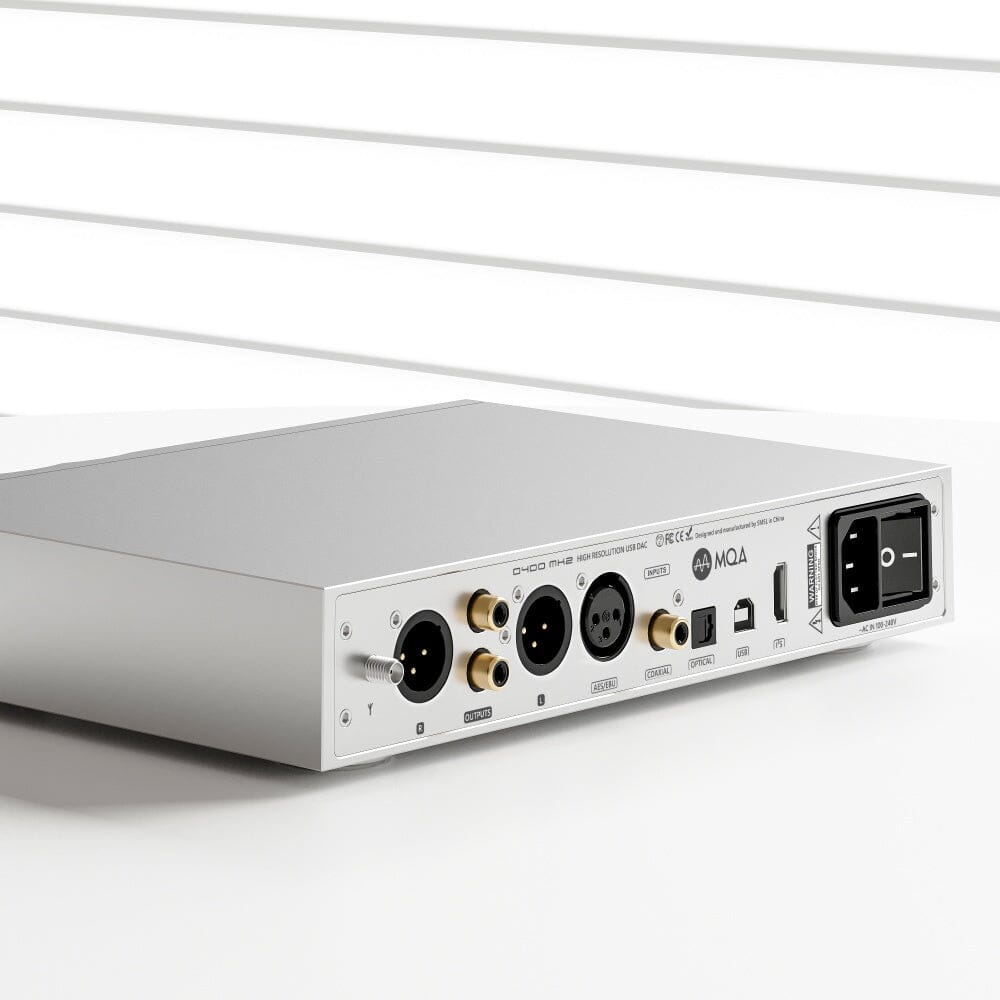

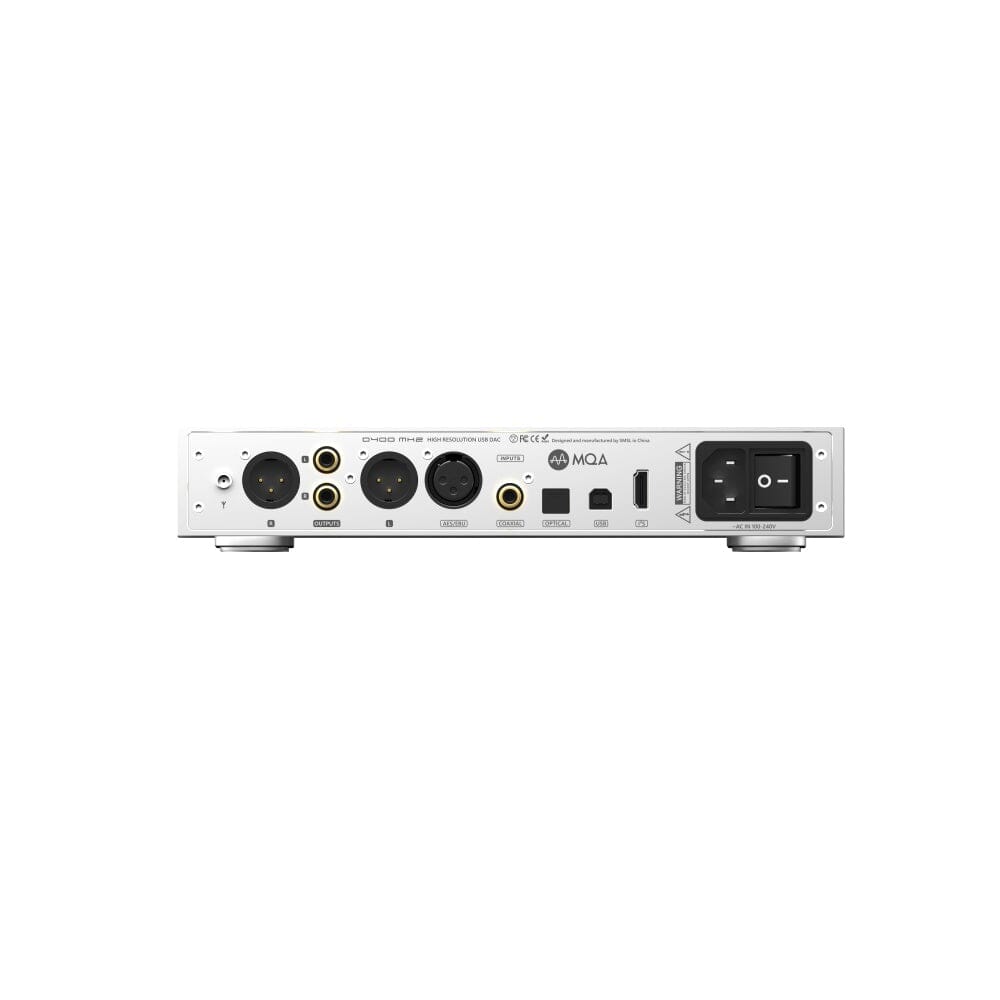

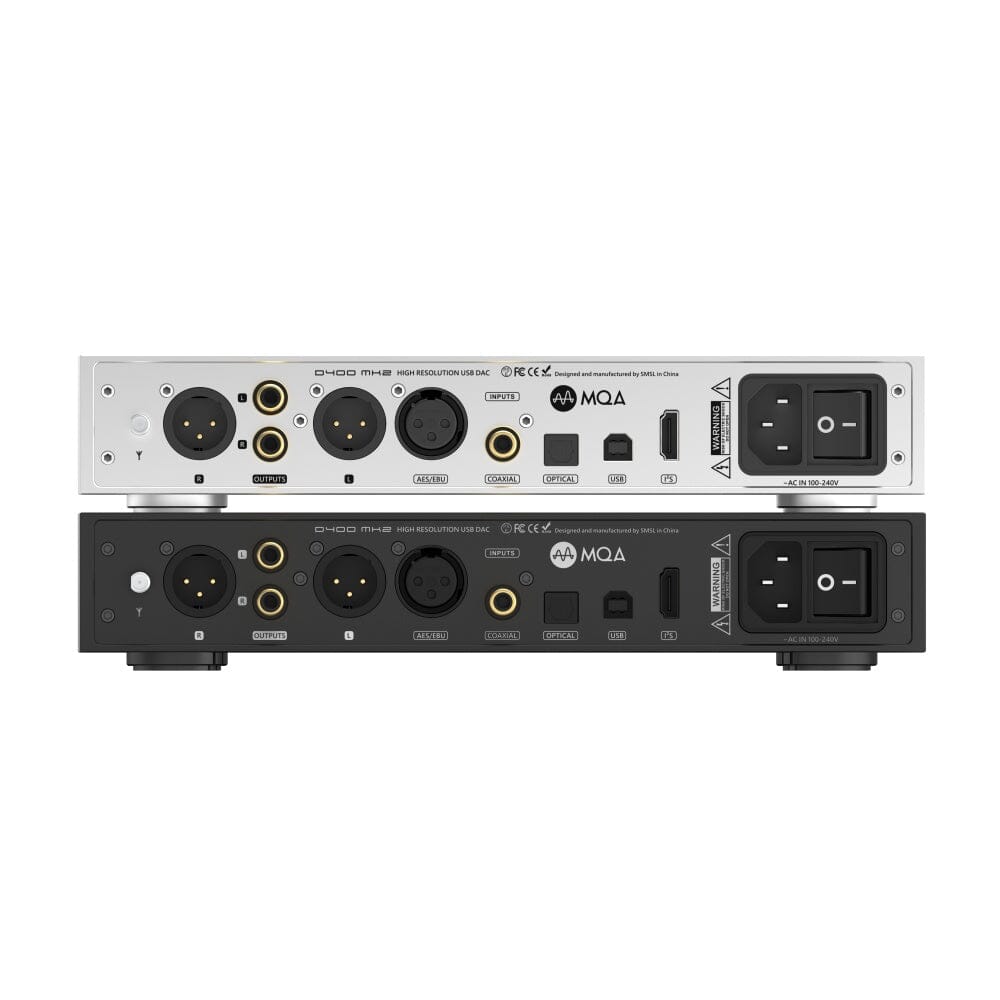

>Versatile Input Options, USB, Optical, Coaxial, I2S, AES/EBU, & Bluetooth.

>XLR+RCA Dual Output Options.

>Fully Laminated Tempered Glass Color IPS Display.

>DSD Direct Access(DSD Bypass) Functionality.

>High-Quality CNC-Machined Aluminum Alloy Build.

>Hi-Res Audio Certified.

Upgrade your desktop arsenal with the all-new SMSL D400 MK2, a master-class desktop DAC engineered to deliver a pure high-fidelity audio experience to its users. Serving as the ultimate successor in the D400 series, the MK2 brings staggering acoustic performance and flawless precision to your high-fidelity setup. It leverages the latest flagship dual-chip architecture from AKM featuring AK4191+AK4499EX setup that handles the digital to analog conversion. Combined with a premium built-in OCXO clock system, 3rd-generation XMOS processing, full MQA-CD unfolding, and audiophile-grade components, the D400 MK2 achieves an unprecedentedly black background and a dynamic, life-like soundstage. It’s the perfect DAC that will help you take your desktop chain to the ultimate level. Elevate your desktop with the D400 MK2 today!!

Latest-Generation AKM Flagship Architecture:-

SMSL has designed the D400 MK2 with AKM’s latest flagship DAC chipset. It consists of the AK4191 digital processing chipset and the AK4499EX analog conversion chipset. By completely separating the digital filtering/processing stage from the digital-to-analog conversion stage, this layout provides a dedicated, interference-free signal path for high-resolution sources. The result is class-leading performance, achieving a staggering THD+N (distortion rate) of just 0.00006% (-124dB unweighted), with a massive dynamic range of 132dB on the balanced XLR output.

Precision Timing With OCXO & CK-04 Clock System:-

Digital timing in the SMSL D400 MK2 is flawlessly managed by a built-in 10MHz OCXO (Oven-Controlled Crystal Oscillator) specified at an ultra-precise ±5 ppb. The OCXO maintains the crystal at a strictly controlled operating temperature to eliminate frequency variation. S.M.S.L pairs this with their self-developed CK-04 clock processing circuit, perfectly eliminating jitter before the digital-to-analog conversion even begins. This ensures a remarkably stable timing reference across all supported digital interfaces.

3rd Generation XMOS USB Processor with MQA & Native DSD Decoding Support:-

The D400 MK2 is equipped with the highly acclaimed 3rd-generation XMOS XU-316 processor, handling high-bandwidth digital input over USB and I²S seamlessly. The DAC supports bit-perfect decoding for high-resolution audio formats, including PCM up to 32-bit/768kHz and native DSD512. Furthermore, it boasts comprehensive hardware MQA and MQA-CD decoding via USB, Optical, and Coaxial inputs. For true purists, the D400 MK2 features a DSD Direct Access (DSD Bypass) function, allowing the DSD signal to bypass the internal volume control for an unaltered, pure analog output.

High-Definition Wireless Bluetooth Input:-

Embrace the convenience of wireless audio without sacrificing fidelity. The D400 MK2 integrates a high-end Qualcomm Bluetooth platform that supports high-resolution transmission protocols, including LDAC (up to 24-bit/96kHz), aptX-HD, aptX, SBC, and AAC. Bluetooth acts as a dedicated selectable digital input mode, utilizing the exact same premium DAC and analog output circuitry as the wired inputs for uncompromising wireless sound quality.

Uncompromised Performance with Audiophile Grade Components:-

The SMSL D400 MK2 offers uncompromised performance with high-end premium quality audiophile-grade components on the audio-circuitry. The analog output stage is meticulously crafted with five high-end dual operational amplifiers and a vast array of premium imported capacitors. To guarantee that the music emerges from an absolute pitch-black background, S.M.S.L implemented an advanced low-noise power processing system. Multiple built-in low-noise regulated power supplies improve efficiency while isolating the delicate audio circuits from electrical interference.

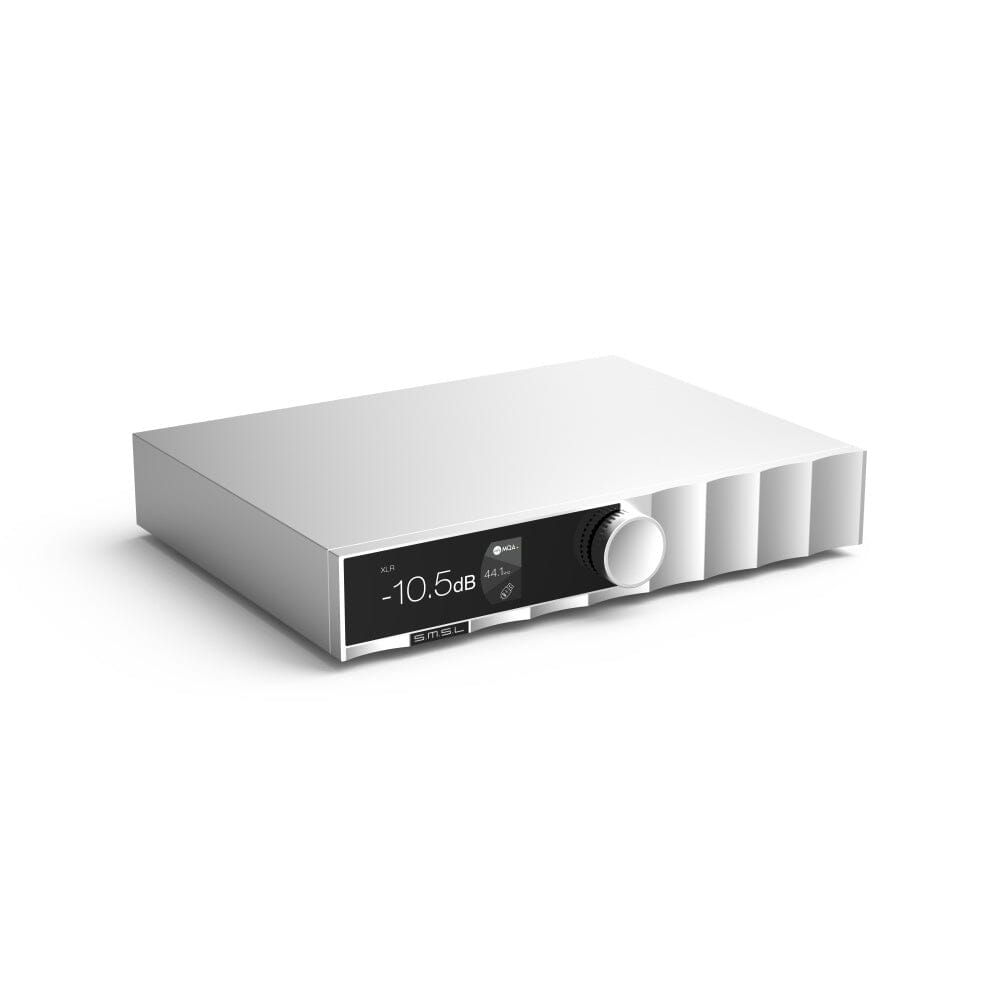

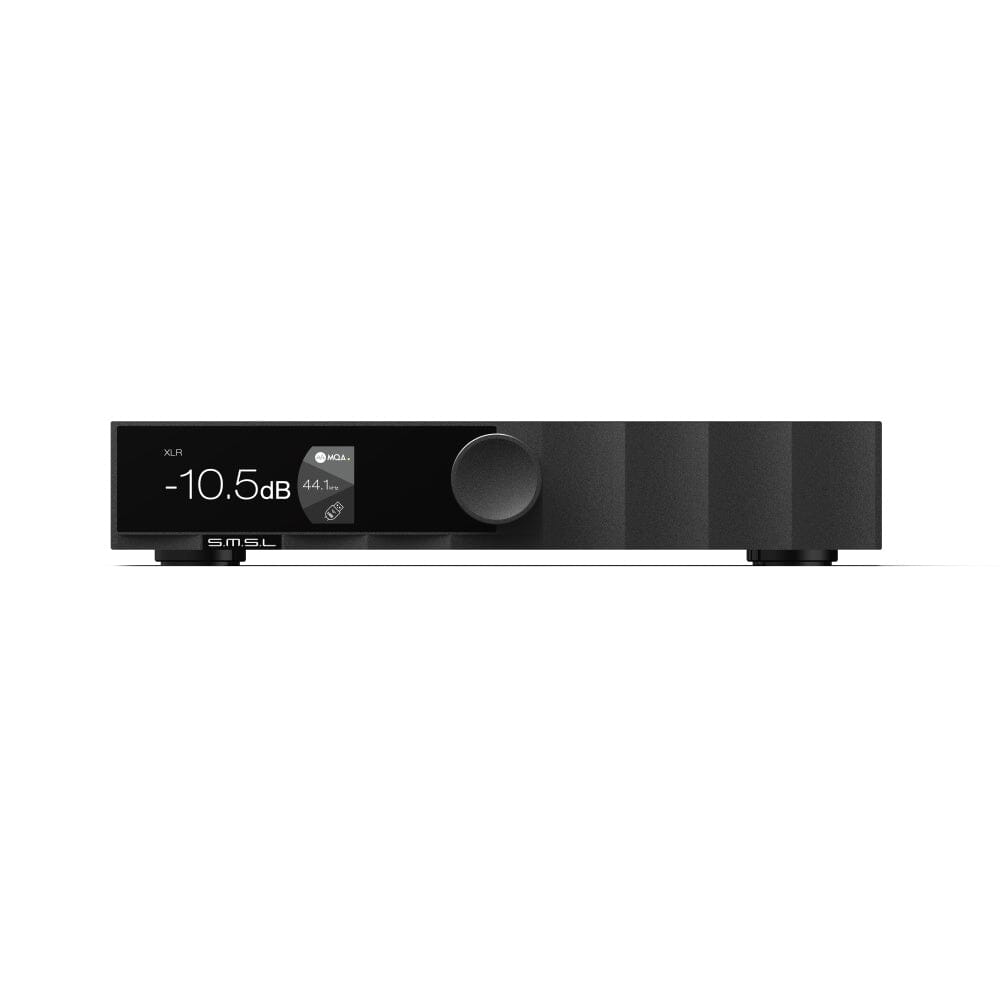

Exquisite Metallic Chassis & Full-Color IPS Display Screen:-

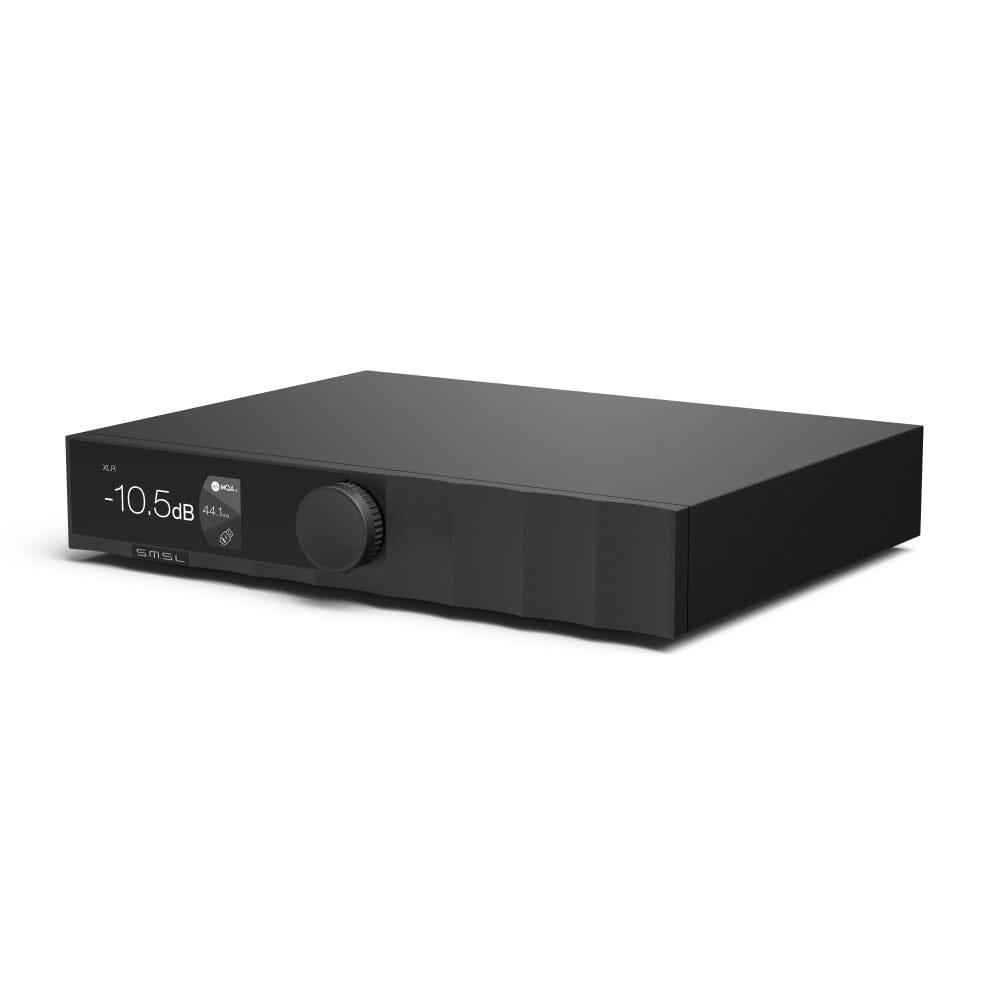

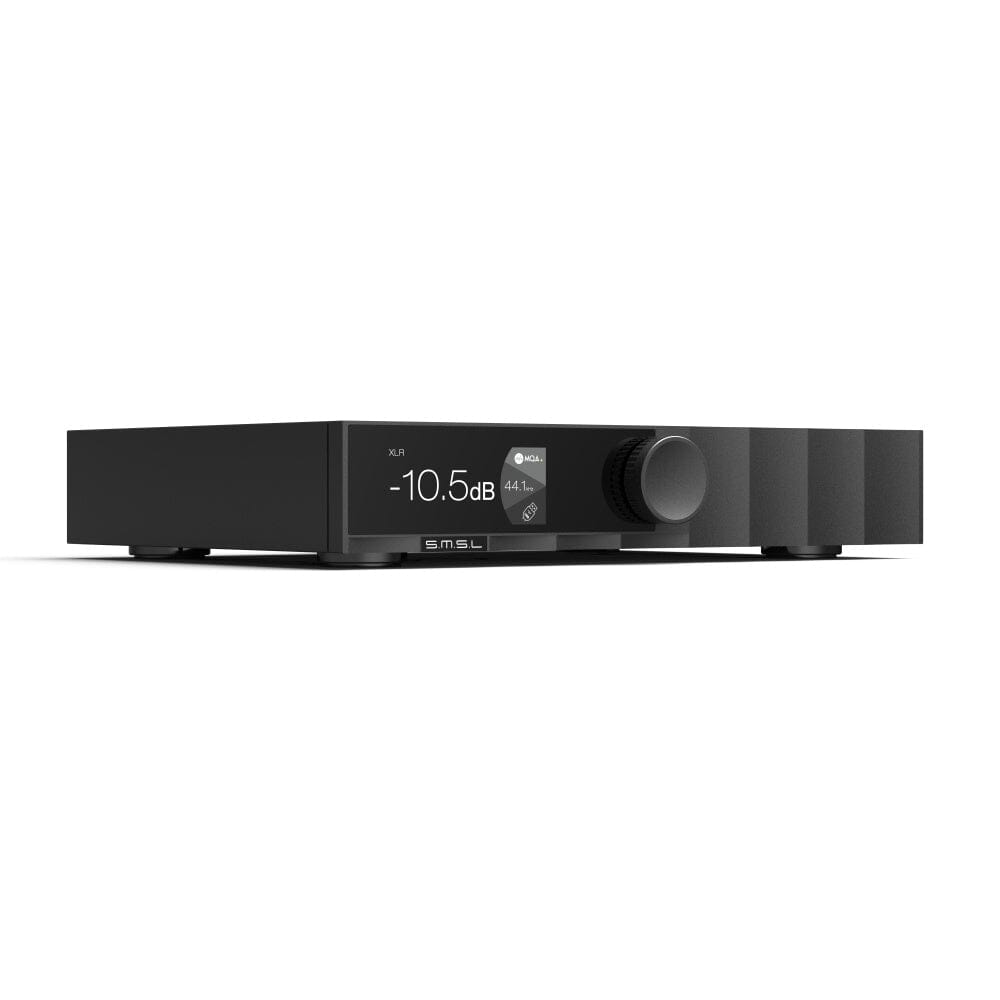

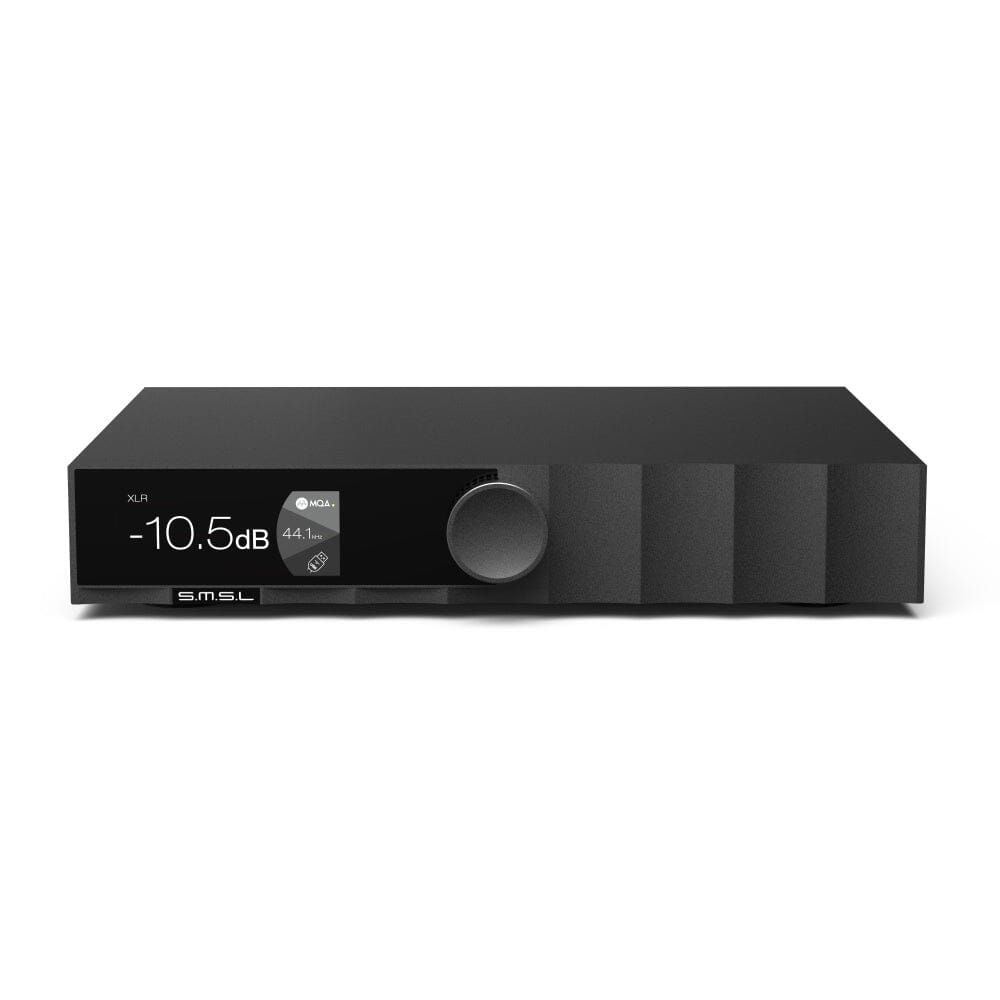

Matching its world-class sound, the D400 MK2 boasts a premium physical build. The outer shell is constructed from high-quality, CNC-machined aluminum alloy that effectively dissipates heat and rejects external EMI/RFI. The front panel features a fully laminated color IPS display protected by tempered glass, providing clear, intuitive visuals of your sampling rates, volume, and active inputs (including an independent DoP display function). A full-featured remote control is included, ensuring you have total command over your listening experience right from your seat.
